    PCD ISO Face Milling cutter FMP080SA27-BE12-12 with 12 cutting edges tool to efficiently machine flat surfaces

    Ask Lasest Price
    Brand Name : Worldia
    Model Number : FMP080SA27-BE12-12
    Certification : ISO9001/ISO14001
    • Product Details
    • Company Profile

    PCD ISO Face Milling cutter FMP080SA27-BE12-12 with 12 cutting edges tool to efficiently machine flat surfaces

    PCD ISO Face Milling cutter FMP080SA27-BE12-12 with 12 cutting edges tool to efficiently machine flat surfaces


    SPECIFICATION

    SpecificationInventoryDD1D2D3LAp maxZkgmax RPMMaterial
    FMP040SA16-BE12-06040401060013401636——401160.3640000Steel
    FMP050SA22-BE12-08040401060005502245——401180.5535100Steel
    FMP063SA22-BE12-10040401060006632245——4011100.7530200Steel
    FMP080SA27-BE12-12040401060007802750——5011120.9627500Steel+Auminium
    FMP100SB32-BE12-160404010600081003270——5011161.4523800Steel+Auminium
    FMP125SB40-BE12-200404010600091254090——6311202.4019100Steel+Auminium
    FMP160SC40-BE12-240404010600101604011566.76311243.001 4900Steel+Auminium
    FMP200SC60-BE12-3004040106001120060150101.66311304.2511 900Steel+Auminium
    FMP250SC60-BE12-3604040106001225060200101.66311366.509550Steel+Auminium
    Cutters delivered assembled with spare parts, but without inserts, dynamically balanced to G2.5 at 25000 RPM unit: mm

    Main Applications

    Worldia FMP-BE Milling Cutters were developed for high-speed machining of light metal on even small-size machining centers with precision spindles. Thanks to the innovative Bimetal Aluminium/ Steel body design, requirements for low weight, low inertia, and precise balancing to allow high spindle acceleration, high strength, and wear resistance are met at the same time. Cutters from diameters 80 to 160 mm can be mounted to the same adaptor, whereas e.g. the weight of a diameter 160 mm cutter with BT30 adaptor does not exceed 3 kg.


    All Worldia FMP-BE cutters have 1 standard insert pocket that allows usage of different combinations of BEHW1204 PCD- and PCBN-tipped inserts, adjustable or non-adjustable for a comprehensive range of roughing and finishing applications including hatch milling.


    Design Features

    Insert Type

    1. Aluminium Alloy/ Steel Bimetal design-

    - Al center body for weight reduction

    - Hardened Steel ring for high rigidity and wear resistance, therefore longer cutter life versus cutters with Aluminium body

    2. High precision insert pocket seats keeping0,02 mm axial runout without insert adjustment

    3. As a standard, each pocket can also be adjusted to um axial runout within a 0,1 mm range

    4. BEHW inserts are available in a variety of materials, lead angles, wiper, and corner designs for many different applications in face and shoulder milling roughing and finishing

    5. Separation between insert positioning face and cutting edge to protect cutting edge and to simplify the use of overlapped or retipped inserts

    6. Inserts with 2 cutting edges and relap/ retip service to reduce tooling cost per part

    7. Internal coolant through the cutter body

    BEHW PCD-tipped Milling Insertsfor Light and Medium Applications

    PCD-tipped milling inserts with various angles, wipers and corner radii for face and shoulder milling applications with higher depth of cut and Si-content <10%.
    Dimensions
    L (mm)B (mm)S (mm)
    12.29.5254.76

    TypeCutter diameterSpecificationCutting EdgeDimensionsN
    25- 4040Cutting TipsBS (mm)Ap Max (mm)Kr (°)Re (mm)PD10E
    Standard 75°BEHW1204EZFR1 C03CB05F11475一一HS03050
    VBEHWI204EZFR1B C03CB05F11475一一H503615
    v!BEHW1204EZFR2 C03CB05F21475一一HS03665
    Wiper 75°VBEHW1204EZFR-WG C03CB05F14475HC03020
    vBEHW1204EZFR1B-WG C03CB05F14475HC07955
    VBEHW1204EZFR2-WG C03CB05F24475HS05456
    Comer 75°VBEHW1204EZFR1-PT
    R04CB05
    F14750.4HS01342
    vBEHW1204EZFR1B-PT
    R04CB05
    F14750.4HC03861
    VBEHW1204EZFR2-PT
    R04CB05
    F24750.4HC01106
    Universal 90°VBEHW1204PZFR1-UW R04CB05F11.54900.4HC02033
    VBEHW1204PZFL1-UW
    R04CB05
    F11.54900.4O
    BEHW1204PZFR1B-UW
    R04CB05
    F11.54900.4HS03185
    VBEHW1204PZFR2-UW
    R04CB05
    F21.54900.4HS03630
    Full Length 90°
    I
    BEHW1204PZFR1 R04CB12F11.511900.4HS01810
    VBEHW1204PZFL1 R04CB12F11.511900.4O
    vBEHW1204PZFR1B R04CB12F11.511900.4HC03161
    Inventory CodeDelivery Time
    In stock, MANANOVAmax.1 week
    OSemi-standard, made to orderapprox.5 weeks
    CCustomized, made to orderapprox.8 weeks

    Application Case Studies and Worldia Recommendations

    Workpiece: Integrate valve of heat
    pump
    Material: Aluminum alloy

    Spindle: Single spindle

    Maximum speed:16000RPM

    Adaptor: BT40

    Surface finish: Ra0.8

    Workpiece: Battery compartment
    Material: Aluminum alloy

    Spindle: Single spindle

    Maximum speed:16000RPM

    Adaptor: HSK63A
    Surface finish: Ra2.5

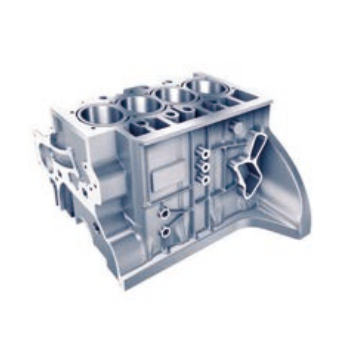

    Workpiece: Cylinder block

    Material: Aluminum alloy + gray cast iron
    Spindle: Single spindle

    Maximum speed:12000RPM

    Adaptor: HSK63

    Processing type: Surface milling

    Processing time:1
    Surface finish: Ra10

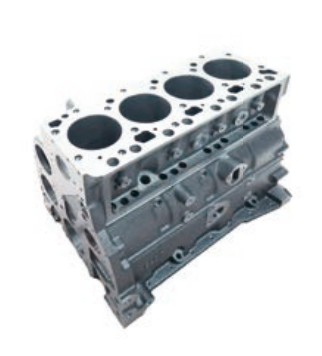

    Workpiece: Cylinder block

    Material: HT280

    Adaptor: HSK100

    Hardness: HB200-275

    Processing: Bottom surface

    Processing type: Milling

    Processing time:1

    Surface finish: Ra3.2


    Worldia Services

    Technology Consulting and Custom Tool DesignAfter careful study of your requirements, our engineers suggest the most efficient
    cutting process and tools. If required, design tools exactly to your needs.
    Tool Assembly and SettingIf requested, we assemble the cutters with inserts and adjust them before delivery
    Insert Retipping and RelappingWe offer retipping to same insert size underlapping at attractive conditions
