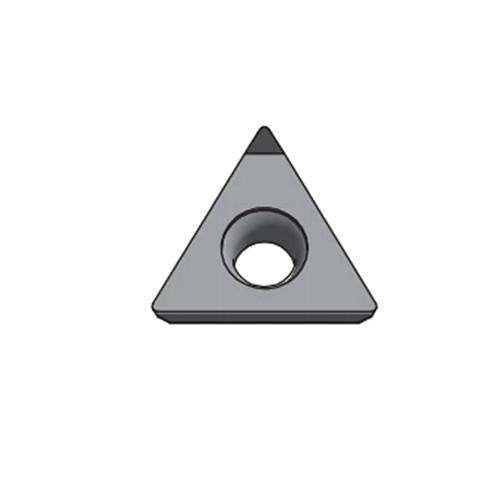

    Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness

    Ask Lasest Price
    Brand Name : Worldia
    Model Number : TC Type
    Supply Ability : 20,000 (monthly)
    Delivery Time : 15days
    • Product Details
    • Company Profile

    Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness

    Specifications of PCD/CVDD Insert with Chip-breaker

    Triangle Polycrystalline Diamond Inserts Pcd Superb Hardness

    Grade ic φd s r la
    ISO catalog number ANSI catalog number Tip Shape PD01E PD10E PD32E CVDD mm mm mm mm mm
    TCGW080202-1N P00P07 TCGW(1.5)(1.5)(0.5)-1N P00P07 CBCBC125S 4.76 2.4 2.38 0.2 2.5
    TCGW080204-1N P00P07 TCGW(1.5)(1.5)1-1N P00P07 CBCBC125S 4.76 2.4 2.38 0.4 2.5
    TCGW080202-1N P00P07 TCGW(1.5)(1.5)(0.5)-1N P00P07 SLCBC125S 4.76 2.4 2.38 0.2 2.5
    TCGW080204-1N P00P07 TCGW(1.5)(1.5)1-1N P00P07 SLCBC125S 4.76 2.4 2.38 0.4 2.5
    TCGW080202-3N P00P07 TCGW(1.5)(1.5)(0.5)-3N P00P07 CBCBC125S 4.76 2.4 2.38 0.2 2.5
    TCGW080204-3N P00P07 TCGW(1.5)(1.5)1-3N P00P07 CBCBC125S 4.76 2.4 2.38 0.4 2.5
    TCGW110302-1N P00P07 TCGW22(0.5)-1N P00P07 CBCBC125S 6.35 2.8 3.18 0.2 2.5
    TCGW110304-1N P00P07 TCGW22 1-1N P00P07 CBCBC125S 6.35 2.8 3.18 0.4 2.5
    TCGW110302-1N P00P07 TCGW22(0.5)-1N P00P07 SLCBC125S 6.35 2.8 3.18 0.2 2.5
    TCGW110304-1N P00P07 TCGW22 1-1N P00P07 SLCBC125S 6.35 2.8 3.18 0.4 2.5
    TCGW110302-3N P00P07 TCGW22(0.5)-3N P00P07 CBCBC125S 6.35 2.8 3.18 0.2 2.5
    TCGW110304-3N P00P07 TCGW22 1-3N P00P07 CBCBC125S 6.35 2.8 3.18 0.4 2.5
    TCGW160402-1N P00P07 TCGW33(0.5)-1N P00P07 CBCBC125S 9.525 4.4 4.76 0.2 2.5
    TCGW160404-1N P00P07 TCGW33 1-1N P00P07 CBCBC125S 9.525 4.4 4.76 0.4 2.5
    TCGW160408-1N P00P07 TCGW33 2-1N P00P07 CBCBC125S 9.525 4.4 4.76 0.8 2.5
    TCGW160402-1N P00P07 TCGW33(0.5)-1N P00P07 SLCBC125S 9.525 4.4 4.76 0.2 2.5
    TCGW160404-1N P00P07 TCGW33 1-1N P00P07 SLCBC125S 9.525 4.4 4.76 0.4 2.5
    TCGW160408-1N P00P07 TCGW33 2-1N P00P07 SLCBC125S 9.525 4.4 4.76 0.8 2.5
    TCGW160402-3N P00P07 TCGW33(0.5)-3N P00P07 CBCBC125S 9.525 4.4 4.76 0.2 2.5
    TCGW160404-3N P00P07 TCGW33 1-3N P00P07 CBCBC125S 9.525 4.4 4.76 0.4 2.5
    TCGW160408-3N P00P07 TCGW33 2-3N P00P07 CBCBC125S 9.525 4.4 4.76 0.8 2.5
    Application of PCD chip-breaker insert

    PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC),

    and carbon fiber-reinforced plastics (CFRP).
    PCD with flood coolant can also be used in titanium super-finishing applications.

    • Aluminum and aluminum alloys
    • Copper, brass, and bronze alloys
    • Zinc and magnesium alloys
    • Carbon Fiber
    • Epoxy resins
    • Plastics
    • Fiberglass composites
    • Graphite composites

    Functions and Features of PCD chip-breaker insert

    1. Eliminate bird nest chips when turning aluminum or other workpiece materials;

    2. Excellent chip control is available in finish machining and general machining with the same chip pocket form;

    Special Focus of PCD chip-breaker insert

    Triangle Polycrystalline Diamond Inserts Pcd Superb HardnessTriangle Polycrystalline Diamond Inserts Pcd Superb Hardness

    Material Introduction

    PCD Chipbreaker Insert use premium PCD materials for the cutting tips and high quality tungsten carbide for the substrates.
