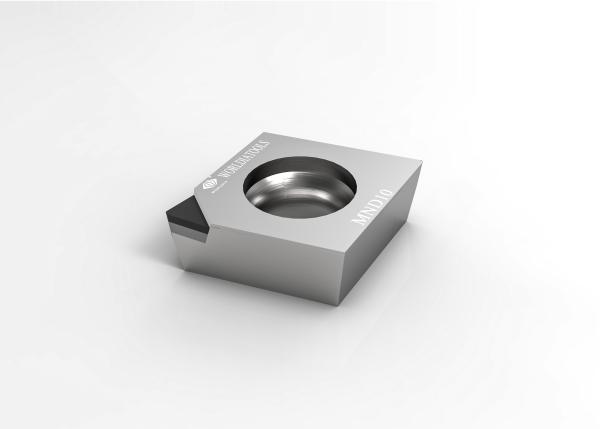

    CCGT09T308 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials

    Ask Lasest Price
    Brand Name : ManaNova
    Model Number : CCGT 09T308
    Certification : ISO9001,14001.18001, RoHS
    Price : $20-40/ Piece
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : In stock
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    CCGT09T308 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials

    CCGT09T308 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials

    In the manufacturing worldia, changes push us to promote our products and service.

    WORLDIA pays special attention to the making of Standard Super Hard Cutting Tools.


    Material:

    We manufacture PCD Tools with advanced processing machines and control the product quality

    from the very beginning which keeps PCD tools with high accuracy and good quality with consistency.


    We manufacture CBN tools with an industry-leading 5-axis cutting machine and self-designed vacuum

    brazing furnace which keeps CBN tools with high accuracy and welding strength.


    Specification:


    AngleDimensionsGrade
    ANSI CodeISO CodeTipsIC
    mm
    S
    mm
    R
    mm
    Φd
    mm
    LE
    mm
    MND
    10
    CCGT 21.50.5CCGT 0602021N6.352.380.22.82.5
    CCGT 21.51CCGT 0602041N6.352.380.42.82.5
    CCGT 32.50.5CCGT 09T3021N9.5253.970.24.42.5
    CCGT 32.51CCGT 09T3041N9.5253.970.44.42.5
    CCGT 32.52CCGT 09T3081N9.5253.970.84.42.5

    For another ISO Code, please get in touch with us!

    Application:


    MND10Applied to the cutting of non-ferrous materials such as aluminum alloys, etc.

    PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP).
    PCD with flood coolant can also be used in titanium super-finishing applications.
    ·Aluminum and aluminum alloys
    ·Copper, brass, and bronze alloys
    ·Zinc and magnesium alloys
    ·Carbon Fiber
    ·Epoxy resins
    ·Plastics
    ·Fiberglass composites
    ·Graphite composites

    Description:

    "ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.

    we strictly choose PCD and PCBN materials to provide the universal cutting effect.


    MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to

    provide fast and efficient service for domestic and foreign customers to meet their

    demand for standardized and universalized tools.


    Main products:


    PCD insert: Providing stable, universal, high efficient cutting effect.

    PCBN insert: 7 material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.


    Recommendation:

    Feed rate recommendation
    Nose radius(mm)Ra um
    0.20.40.81.63.26.4
    Feed Rate f (mm/rev)≤
    0.20.0280.0400.0570.0800.1130.160
    0.40.0400.0570.0800.1130.1600.226
    0.80.0570.0800.1130.1600.2260.320
    1.20.0690.0980.1390.1960.2770.392
    1.60.0800.1130.1600.2260.3200.453
    2.40.0980.1390.1960.2770.3920.554
