    VCGW VCGT Pure Carbon CVD Diamond Turning Insert For Hard Rubber

    Ask Lasest Price
    Brand Name : Worldia
    Model Number : VCGW/VCGT
    Price : 15-30/Piece
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 20000PCS(monthly)
    Delivery Time : 14 days
    • Product Details
    • Company Profile

    VCGW VCGT Pure Carbon CVD Diamond Turning Insert For Hard Rubber

    VC Type High effiency CVD diamond Turning Insert for Non-ferrous machining


    INTRODUCTION


    MaterialGrain sizeFeaturesApplication
    CVDD---

    CVDD is a pure carbon material without binder with extreme abrasion resistance and good thermal suitability.Due to its perfect cutting edge suitable fro appications where mirror finishes are required.

    Application areas include the machining of abrasive workpiece such as MMC,high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and other applications.

    APPLICATION

    CVD diamond has the advantage of high hardness,strong wear resistance and strong stability.

    Compared to PCD tools,the working life of CVD tools is several times better than PCD tools

    e.g.the finishing of aluminum, copper, tungsten alloy and other non-metal parts in automobile

    parts and other industries.
    By using of CVD diamond tools, high efficiency machining of hard materials can be achieved

    such as glassfibre reinforced plastics,high-silicon aluminum alloy.Bond-free makes CVD diamond

    tools suit for machining corrosion materials with high speed and long service life.

    We are able to provide Lapped or Polished Finish for different applications.Lapped Finish is mainly

    applied for dressing tools, Polished Finish is used for cutting tools especially for graphite cutting.


    SPECIFICATIONS

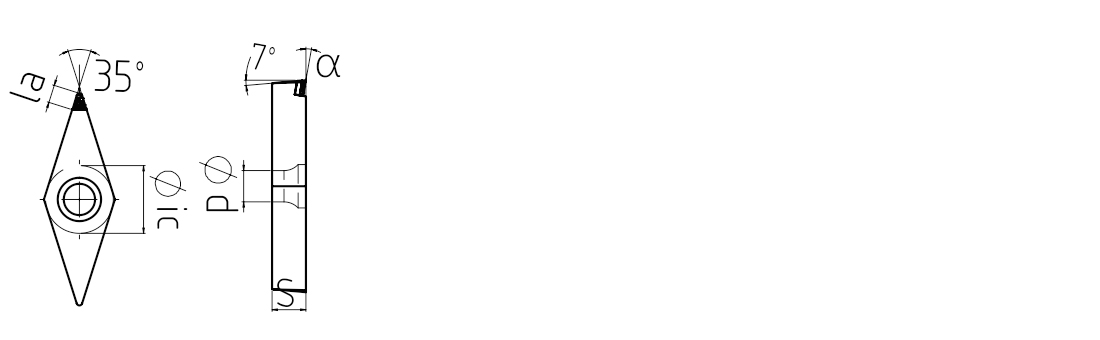

    icφdsαrela
    ISO catalog numberANSI catalog numberTip ShapeCVDDmmmmmmDegreemmmm
    VCGW110302-1N P00P07VCGW22(0.5)-1N P00P07SLST30S6.352.83.180.22.5
    VCGT110302-1N P05P07VCGT22(0.5)-1N P05P07SLST30S6.352.83.180.22.5
    VCGT110302-1N P10P07VCGT22(0.5)-1N P10P07SLST30S6.352.83.1810°0.22.5
    VCGW110304-1N P00P07VCGW221-1N P00P07SLST30S6.352.83.180.42.5
    VCGT110304-1N P05P07VCGT221-1N P05P07SLST30S6.352.83.180.42.5
    VCGT110304-1N P10P07VCGT221-1N P10P07SLST30S6.352.83.1810°0.42.5
    VCGW110308-1N P00P07VCGW222-1N P00P07SLST30S6.352.83.180.82.5
    VCGT110308-1N P05P07VCGT222-1N P05P07SLST30S6.352.83.180.82.5
    VCGT110308-1N P10P07VCGT222-1N P10P07SLST30S6.352.83.1810°0.82.5
    VCGW160402-1N P00P07VCGW33(0.5)-1N P00P07SLST30S9.5254.44.760.22.5
    VCGT160402-1N P05P07VCGT33(0.5)-1N P05P07SLST30S9.5254.44.760.22.5
    VCGT160402-1N P10P07VCGT33(0.5)-1N P10P07SLST30S9.5254.44.7610°0.22.5
    VCGW160404-1N P00P07VCGW331-1N P00P07SLST30S9.5254.44.760.42.5
    VCGT160404-1N P05P07VCGT331-1N P05P07SLST30S9.5254.44.760.42.5
    VCGT160404-1N P10P07VCGT331-1N P10P07SLST30S9.5254.44.7610°0.42.5
    VCGW160408-1N P00P07VCGW332-1N P00P07SLST30S9.5254.44.760.82.5
    VCGT160408-1N P05P07VCGT332-1N P05P07SLST30S9.5254.44.760.82.5
    VCGT160408-1N P10P07VCGT332-1N P10P07SLST30S9.5254.44.7610°0.82.5
