    Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum

    Ask Lasest Price
    Brand Name : Worldia
    Model Number : Standard/Wiper/Corner edge/Popular wiper/Straight edge
    Price : $500-1000/Piece
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 20,000PCS(monthly)
    Delivery Time : In stock,immediate despatch
    • Product Details
    • Company Profile

    Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum

    Standard Diamond Milling Insert PCD milling cutters for end and shoulder milling


    DESCRIPTION:

    • Introduction
    WORLDIA PCD Indexable face milling on end milling and shoulder milling of non-ferrous metal.Compare with the same pricing level products,this line of products has super higher flexibility ,both roughing and finishing processing on one tool.Maximum reduce time for changing tools.Whether high chip removal,consistency,or flatness,WORLDIA PCD indexable face milling always meets customers' requirements.
    • Application
    WORLDIA PCD Milling Insert are designed by variety of Kr,could meet different application of end millling and shoulder milling.Two cutting edges design and retip service which could help customers reduce their cost.There are five types of cutting edge which can meet various application with different combinations.Realize both roughing and finishing in one tool.

    FEATURES:

    • "Aluminum Alloy-Steel" double metal design the aluminum center reduces the weightwhile the hardened steel outer ring increases the rigidity speed and feeds.
    • The double metal design makes the tooling lifetime several times longer than other aluminum face milling cutter.
    • High-precision pocket seat keeps 0.02mm axial runout without insertadjustment.
    • It can be easily adjusted to 2um axial run out within 0.1mm range.
    • Inserts are designed by variety of Kr could meet different application of end milling and shoulder milling.
    • The positioning surface and Flank face separated design, keep the positioning surface effectiveness when we do relap or retip.
    • Two cutting edges design and retip service which could help our customers reduce their cost..
    • Rough and finish in one tool.

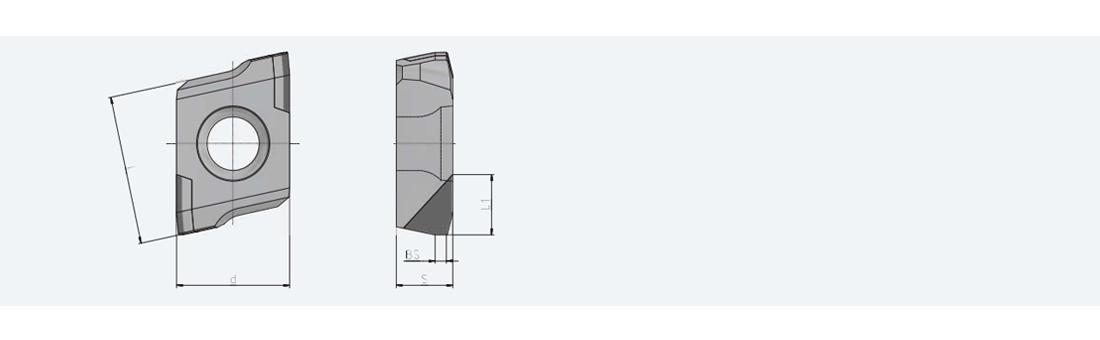

    SPECIFICATIONS:

    MaterialTeethLdSBSL1Re
    TypeSpecificationPD01FPD10FPD32ECVDDZmmmmmmmmmmmm
    StandardBEHW1204EZTR1112.239.5254.76180.4
    BEHW1204EZTR2212.239.5254.76180.4
    WiperBEHW1204EZTR1-WG112.239.5254.7648-
    BEHW1204EZTR2-WG212.239.5254.7648-
    Sharp cornerBEHW1204EZTR1-PT112.239.5254.76-80.4
    BEHW1204EZTR2-PT212.239.5254.76-80.4
    Right-angleBEHW1204PZTR1112.239.5254.761110.4

    PROCESSING CASES:


    DETAIL:

    SERVICES:


    Under current cutting condition during machining WORLDIA can provide the most reasonablescientific

    process and design to customers depends on our fully experience to ensure the high efficiency.


    • New Products Delivery
    According to requirements,we can adjust the inserts and setup milling cutter completely before delivery.
    • PCD Inserts Service
    Supply regrinding service.
    Supply retip service which can
    keep the same size as the new tools.
