    PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing

    Ask Lasest Price
    Brand Name : Worldia
    Model Number : Standard
    Price : $500-1000/Piece
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000PCS(monthly)
    Delivery Time : In stock,immediate despatch
    • Product Details
    • Company Profile

    PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing

    Face Milling Cutter Indexable PCD milling cutter for CNC Milling Machining


    DESCRIPTION:

    • Introduction
    Worldia PCBN Face Milling Cutter with indexable inserts used for finishing on end milling of cast iron,it can satisfy the demand for surface roughness and geometric toklerances.
    • Application
    • Hardened steel
    • Cast irons (Recommend)
    • Sintered irons
    • Power Metallurgy

    FEATURES:

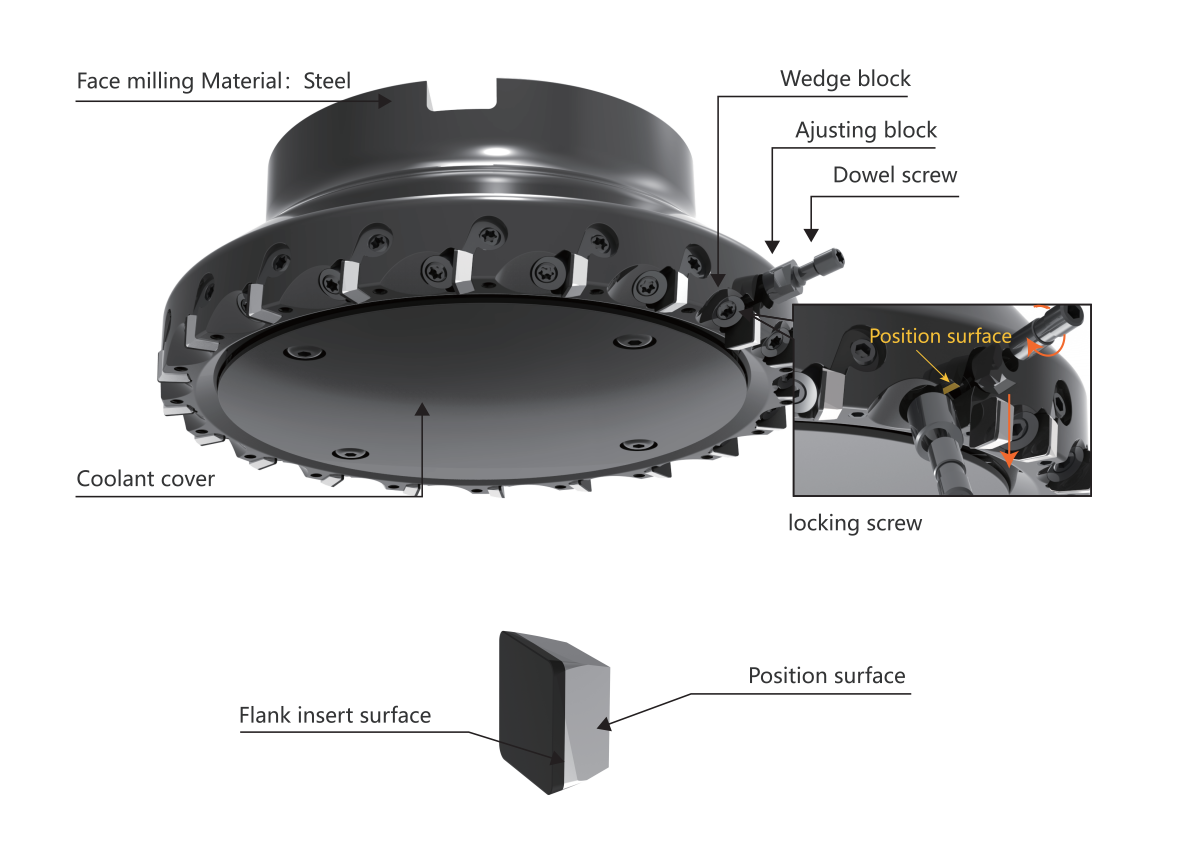

    • Cutter body made by forging Alloy-Steelall setting parts are completed by hard milling with five axle maching one time
    • High-precision pocket seats keep 0.01mm positioning precision without insert adjustment
    • The adjustment structure is simple and easy to use.The inserts can be easily adjusted to 5 micron axial run out within the 0.3mm range
    • Positive rake anglelow resistance cutting,widely application scope
    • Easily install the inserts,including different kinds of wiper inserts
    • The positioning surface and flank face separated design, keep the positioning surface stability and effectiveness.
    • Mini type, full face with 4 tips designmore economical application with regrinding service
    • Multi-kinds of wiper inserts designsuitable for different applications


    SPECIFICATIONS:


    SpecificationSystem CodeDD1D2D3LL1TeethWeightmax RPM
    mmmmmmmmmmmmZKg
    FMP050SA22-SD07-0540401060023502245-407.9450.409500
    FMP063SA22-SD07-0840401060022632245-407.9480.607500
    FMP080SA27-SD07-1040401060021802760-507.94101.206000
    FMP100SB32-SD07-12404010600201003280-507.94121.904700
    FMP125SB40-SD07-16404010600191254090-637.94163.203800
    FMP160SC40-SD07-20404010600181604011066.7637.94204.503000
    FMP200SC60-SD07-244040106001720060150101.6637.94246.802300
    FMP250SC60-SD07-324040106001625060200101.6637.943211.601900

    PROCESSING CASES:


    DETAIL:


    SERVICES:


    Under current cutting condition during machining WORLDIA can provide the most reasonablescientific

    process and design to customers depends on our fully experience to ensure the high efficiency.


    • New Products Delivery
    According to requirements,we can adjust the inserts and setup milling cutter completely before delivery.
    • PCD Inserts Service
    Supply regrinding service.
    Supply retip service which can
    keep the same size as the new tools.
