    PCD FMP-BE Indexable Face Milling Cutters for CNC Milling Machining

    Ask Lasest Price
    Brand Name : Worldia
    Model Number : FMP63SA22-BE12-10
    Price : $500-1000/Piece
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000PCS(monthly)
    Delivery Time : In stock,immediate despatch
    • Product Details
    • Company Profile

    PCD FMP-BE Indexable Face Milling Cutters for CNC Milling Machining

    PCD FMP-BE Indexable Face Milling Cutters for CNC Milling Machining


    PCD FMP-BE Indexable Face Milling Cutter Descripition:


    WORLDIA PCD FMP-BE indexable face milling cutter on end milling and shoulder milling of non-ferrous metal.

    Compare with the same pricing level products, PCD FMP-BE indexable face milling cutter has super higher flexibility,

    both roughing and finishing processing on one tool. Maximum reduce the time for changing tools.

    Whether high chip removal, consistency, or flatness, PCD FMP-BE indexable face milling cutter always meets

    customers' requirements.


    PCD FMP-BE Indexable Face Milling Cutter Application:


    WORLDIA PCD FMP-BE indexable face milling cutter with exclusive design has helped clients increase their

    capacity and reduce their tooling costs by allowing them to significantly increase speeds and feeds.


    PCD FMP-BE Indexable Face Milling Cutter Features:

    • "Aluminum Alloy-Steel" double metal design the aluminum center of PCD FMP-BE indexable face milling cutter reduces the weightwhile the hardened steel outer ring increases the rigidity speed and feeds.
    • The double metal design of PCD FMP-BE indexable face milling cutter makes the tooling lifetime several times longer than other aluminum face milling cutter.
    • High-precision pocket seat of PCD FMP-BE indexable face milling cutter keeps 0.02mm axial runout without insertadjustment.
    • PCD FMP-BE indexable face milling cuttercan be easily adjusted to 2um axial run out within 0.1mm range.
    • Inserts of PCD FMP-BE indexable face milling cutterare designed by variety of Kr could meet different application of end milling and shoulder milling.
    • The positioning surface and Flank face separated design of PCD FMP-BE indexable face milling cutter keep the positioning surface effectiveness when we do relap or retip.
    • Two cutting edges design and retip service of PCD FMP-BE indexable face milling cutter which could help our customers reduce their cost..
    • Rough and finish in one tool.

    PCD FMP-BE Indexable Face Milling Cutter Specification:


    DD1D2D3LAp1 MaxTeethWeight
    SpecificationSystem CodemmmmmmmmmmmmZKgmax RPMMaterial
    FMP040SA16-BE12-06040401060013401636-401160.3640000Steel
    FMP050SA22-BE12-08040401060005502245-401180.5535100Steel
    FMP063SA22-BE12-10040401060006632245-4011100.7530200Steel
    FMP080SA27-BE12-12040401060007802750-5011120.9627500Steel-aluminium
    FMP100SB32-BE12-160404010600081003270-5011161.4523800Steel-aluminium
    FMP125SB40-BE12-200404010600091254090-6311202.419100Steel-aluminium
    FMP160SC40-BE12-240404010600101604011566.7631124314900Steel-aluminium
    FMP200SC60-BE12-3004040106001120060150101.66311304.2511900Steel-aluminium
    FMP250SC60-BE12-3604040106001225060200101.66311366.59550Steel-aluminium

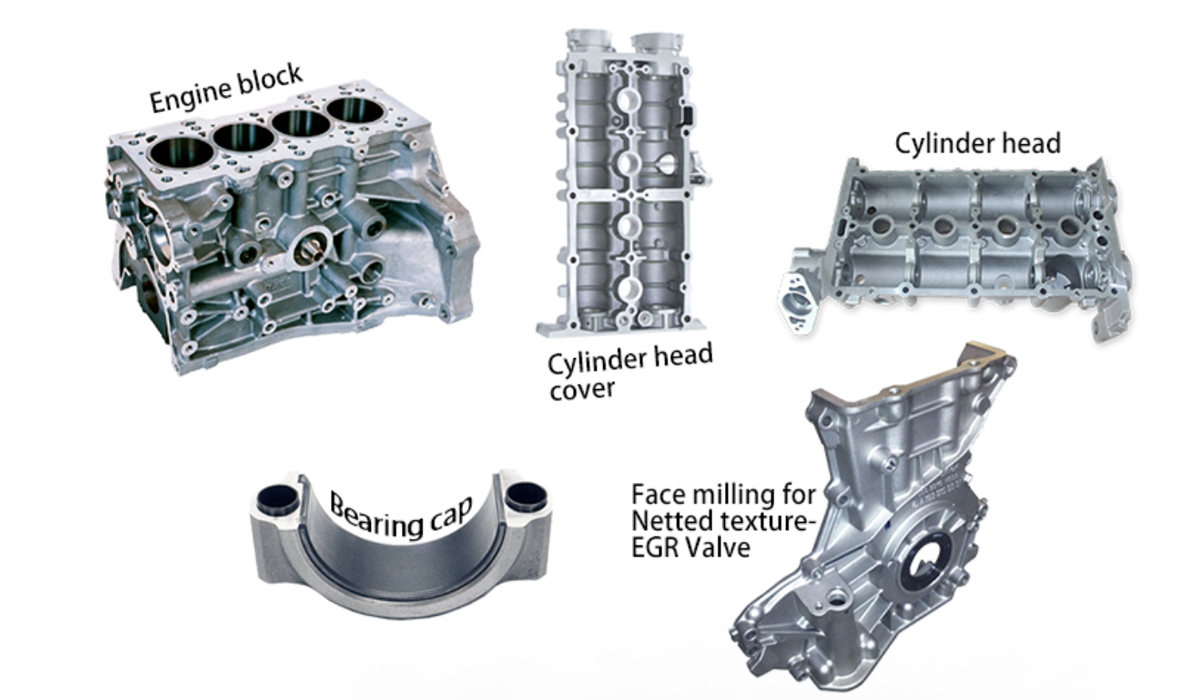

    PCD FMP-BE Indexable Face Milling Cutter Processing Cases:


    PCD FMP-BE Indexable Face Milling Cutter Detail:


    Customer Review of PCD FMP-BE Indexable Face Milling Cutter


    About WORLDIA:



    Beijing Worldia Diamond Tools Co., Ltd was established in 2006.

    As a national hi-tech enterprise, Worldia focuses upon R & D, production, sales and service of high precision diamond cutting tools.


    Our products include high-precision PCD/PCBN/CVDD cutting tools, solid carbide cutting tools, diamond scribing wheels and related accessories.The cutting tools we provide have been widely applied in automotive, electronic, new energy, and other industries.


    Research and development, design, manufacturing application and reconditioning expertise by highly-qualified,

    diverse and motivated team of 1100 employees, there of 150 R&D,1 PhD,100 Graduate Engineers,>30% female team members.
