    CCGW 060204 Standard PCBN Cutting Inserts Carbide Turning Insert For Hardened Steel

    Ask Lasest Price
    Brand Name : ManaNova
    Model Number : CCGW 060204
    Certification : ISO9001,14001.18001, RoHS
    Price : $20-40/ Piece
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : In stock
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    CCGW 060204 Standard PCBN Cutting Inserts Carbide Turning Insert For Hardened Steel


    CCGW060202 Standard PCBN Carbide Turning PCBN Cutting Insert for hardened steel


    PCBN Insert Description:


    Polycrystalline cubic boron nitride (CBN) is a material with excellent hot hardness that can be used at very high

    cutting speeds. It also exhibits good toughness and thermal shock resistance.


    PCBN insert (Polycrystalline cubic boron nitride) is used in machining operations to cut and shape hard

    and abrasive materials such as hardened steel, cast iron, and powder metallurgy.


    MANANOVA PCBN Insert: Worldia Standard portfolio


    MANANOVA is the name for Worldia‘s stock-keeping standard product portfolio.
    It provides best-in-class high-quality products within a wide range of most-common
    applications at very attractive prices.
    Each item has an inventory code which simplifies the order process.


    Main products:


    PCD inserts

    Providing stable, universal, highly efficient cutting effect.

    PCBN inserts

    Universal for hardened steel, cast iron, ductile iron, and powder metallurgy.


    PCBN Insert Application:

    MHN10CApplied to the continuous cutting of hardened steel
    MHN20CApplied to medium interrupted cutting of hardened steel
    MHN30CApplied to the heavy interrupted cutting of hardened steel

    PCBN Insert Specification:


    Material Introduction - Easy choice for CBN Grade


    ISO H: Hardened Steel Continuous cutting

    ISO K: Cast Iron Light interrupted cutting

    ISO S: Powder Metallurgy Heavy interrupted cutting


    MaterialISO HISO KISO S
    PCBN GradeMHN10CMHN20CMNH30CMKN10MKN20MSN10MSN20
    SmoothModerateToughnessCast IronDuctile IronPowder MetallurgyPowder Metallurgy
    Vc180(150~250)
    m/min
    100(50~150)
    m/min
    80(30~120)
    m/min
    600(300~800)
    m/min
    300(150~450)
    m/min
    300(200~500)
    m/min
    500(300~800)
    m/min
    fn0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    %45~5560~7085~9585~9560~7060~7085~95
    Grain size1~2 um1~2 um2~3um2~3 um1~2 um1~2 um2~3 um
    BondTiCTiNCo/WCo/WTiCNTiCNCo/W

    CCGWShapeDimensions
    ANSI CodeISO CodeTipsIC
    mm
    S
    mm
    R
    mm
    Φd
    mm
    LE
    mm
    All
    Stocked
    CCGW 21.50.5CCGW 0602022N6.352.380.22.82.2
    CCGW 21.51CCGW 0602042N6.352.380.42.82.2
    CCGW 21.52CCGW 0602082N6.352.380.82.82.2
    CCGW 32.50.5CCGW 09T3022N9.5253.970.24.42.2
    CCGW 32.51CCGW 09T3042N9.5253.970.44.42.2
    CCGW 32.52CCGW 09T3082N9.5253.970.84.42.2
    CCGW 32.53CCGW 09T3122N9.5253.971.24.42.2

    PCBN Insert Manufacturing & Inspection Process



    About Worldia:


    Bejing Worldia Diamond Tools Co.,Ltd. was established in the year 2006.As a national Hi-Tech enterprise,

    Worldia focuses on R&D, Production, and Sales and Service of high-precision cutting tools.

    Our products mainly cover high-precision PCBN/PCD/CVD cutting tools, solid carbide tools,

    holders as well as PCD/CVD materials.



    Financial Strength, Team Spirit And Integrity
    Enabler Of Our Growth

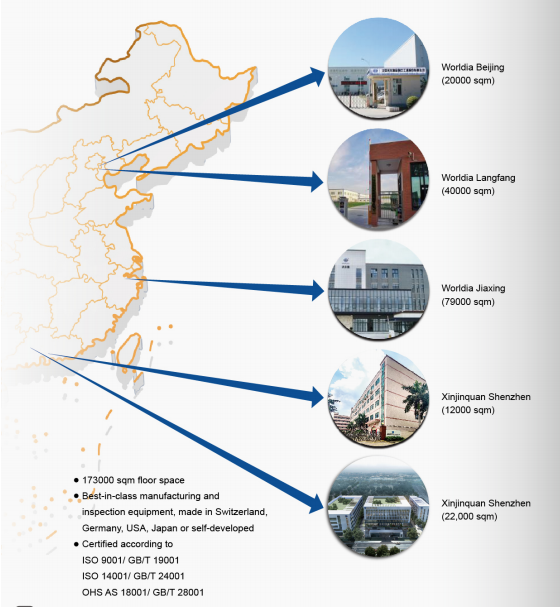

    Made In China For The World
    Meeting High Quality And Performance Standards



    Global Service Capabilities

    Key To Supporting Our Customers
