    ISO14001 High Speed PCBN Cutting Inserts VNGA Insert For Hardened Steel

    Ask Lasest Price
    Brand Name : ManaNova
    Model Number : VNGA 160402
    Certification : ISO9001,14001.18001, RoHS
    Price : $20-40/ Piece
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : In stock
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

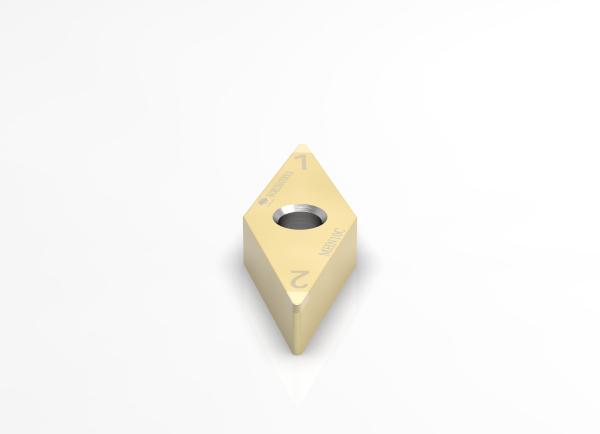

    ISO14001 High Speed PCBN Cutting Inserts VNGA Insert For Hardened Steel

    VNGA160402 Coated CBN Carbide Turning Insert CBN Cutting Insert for hardened steel


    Material:

    Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling cost significantly,

    PCD tools are ideal for use with non-ferrous metal.


    Polycrystalline cubic boron nitride(CBN) is a material with an excellent hot hardness that can be used

    at very high cutting speeds.


    Description:

    "ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.

    we strictly choose PCD and PCBN materials to provide the universal cutting effect.


    The key feature of ManaNova is Easy choice and Fast delivery.
    "Easy choice": It is easy to choose according to the comparison table and application.
    "Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.

    Eliminating force majeure, you can get within 4-5 days.


    Main products:
    PCBN insert:7material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.

    PCD insert: Suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.


    Advantages:
    · Universal
    · Easy choice
    · Fast delivery


    Service:
    · Online store service
    · Local distributor support
    · Technical support


    Application:

    Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel,

    cast iron, and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C,

    MKN10, MKN20, MSN10, MSN20.


    MHN10CApplied to the continuous cutting of hardened steel
    MHN20CApplied to medium interrupted cutting of hardened steel
    MHN30CApplied to the heavy interrupted cutting of hardened steel
    MKN10Applied to the cutting of gray cast iron
    MKN20Applied to the cutting of ductile iron
    MSN10Applied to the cutting of powder metallurgy
    MSN20Applied to the cutting of powder metallurgy

    Specification:

    MaterialISO HISO KISO S
    PCBN GradeMHN10CMHN20CMNH30CMKN10MKN20MSN10MSN20
    SmoothModerateToughnessCast IronDuctile IronPowder MetallurgyPowder Metallurgy
    Vc180(150~250)
    m/min
    100(50~150)
    m/min
    80(30~120)
    m/min
    600(300~800)
    m/min
    300(150~450)
    m/min
    300(200~500)
    m/min
    500(300~800)
    m/min
    fn0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    %45~5560~7085~9585~9560~7060~7085~95
    Grain size1~2 um1~2 um2~3um2~3 um1~2 um1~2 um2~3 um
    BondTiCTiNCo/WCo/WTiCNTiCNCo/W

    VNGAShapeDimensions
    ANSI CodeISO CodeTipsIC
    mm
    S
    mm
    R
    mm
    Φd
    mm
    LE
    mm
    All
    Stocked
    VNGA 330.5VNGA 1604022N9.5254.760.23.812.2
    VNGA 331VNGA 1604042N9.5254.760.43.812.2
    VNGA 332VNGA 1604082N9.5254.760.83.812.2
    VNGA 333VNGA 1604122N9.5254.761.23.812.2
