    CCGW09T302 No Coated PCBN Carbide Cutting Inserts For Powder Metallurgy

    Ask Lasest Price
    Brand Name : ManaNova
    Model Number : CCGW 09T302
    Certification : ISO9001,14001.18001, RoHS
    Price : $20-40/ Piece
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : In stock
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

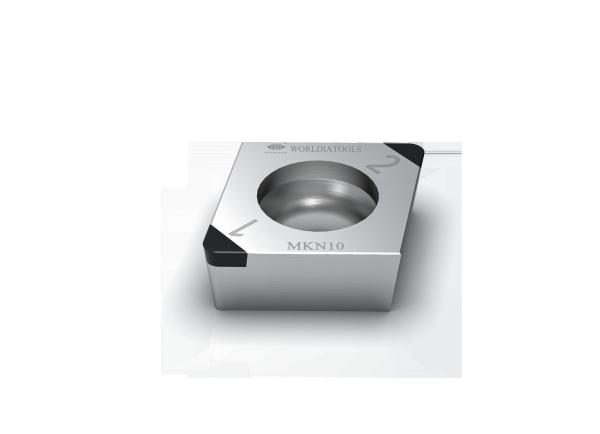

    CCGW09T302 No Coated PCBN Carbide Cutting Inserts For Powder Metallurgy

    CCGW060202 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron


    WORLDIA


    With high-quality products and professional technical support, we are honored to service the top

    manufacturers in automotive, new energy, wind power, engineering machinery industries, etc.


    Description:

    As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality

    management from raw materials, with sophisticated production testing equipment, professional and

    experienced R&D and production team, and professional technical services, so that every user can

    continue to experience Worldia cutting tools advantages.


    “Easy choice and Fast delivery” is the feature of ManaNova


    Main products:

    “Seven materials/ one type” namely each specification corresponding to seven materials

    (MHN10C ,MHN20C ,MHN30C, MKN10,MKN20,MSN 10)is the feature of the PCBN insert.


    PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.


    The PCD insert can provide a stable, universal, high efficient cutting effect.
    PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.


    Advantages:


    ·High quality

    ·Low cost

    ·Factory direct supply


    Specification:

    Material Introduction - Easy choice for CBN Grade

    ISO H: Hardened Steel Continuous cutting

    ISO K: Cast Iron Light interrupted cutting

    ISO S: Powder Metallurgy Heavy interrupted cutting

    MaterialISO HISO KISO S
    PCBN GradeMHN10CMHN20CMNH30CMKN10MKN20MSN10MSN20
    SmoothModerateToughnessCast IronDuctile IronPowder MetallurgyPowder Metallurgy
    Vc180(150~250)
    m/min
    100(50~150)
    m/min
    80(30~120)
    m/min
    600(300~800)
    m/min
    300(150~450)
    m/min
    300(200~500)
    m/min
    500(300~800)
    m/min
    fn0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.2)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    0.1(0.03~0.3)
    mm/r
    %45~5560~7085~9585~9560~7060~7085~95
    Grain size1~2 um1~2 um2~3um2~3 um1~2 um1~2 um2~3 um
    BondTiCTiNCo/WCo/WTiCNTiCNCo/W

    CCGWShapeDimensions
    ANSI CodeISO CodeTipsIC
    mm
    S
    mm
    R
    mm
    Φd
    mm
    LE
    mm
    All
    Stocked
    CCGW 21.50.5CCGW 0602022N6.352.380.22.82.2
    CCGW 21.51CCGW 0602042N6.352.380.42.82.2
    CCGW 21.52CCGW 0602082N6.352.380.82.82.2
    CCGW 32.50.5CCGW 09T3022N9.5253.970.24.42.2
    CCGW 32.51CCGW 09T3042N9.5253.970.44.42.2
    CCGW 32.52CCGW 09T3082N9.5253.970.84.42.2
    CCGW 32.53CCGW 09T3122N9.5253.971.24.42.2
