    2mm Pcd Mirco Drilling Tool For Polysilicon / Graphite / Composite Ceramic

    Ask Lasest Price
    Brand Name : Worldia
    Model Number : d1*L2*SD3.175*L*α
    • Product Details
    • Company Profile

    2mm Pcd Mirco Drilling Tool For Polysilicon / Graphite / Composite Ceramic

    Pcd mirco Drilling Tool dirll bit For Polysilicon/ graghite/ composiite ceramic

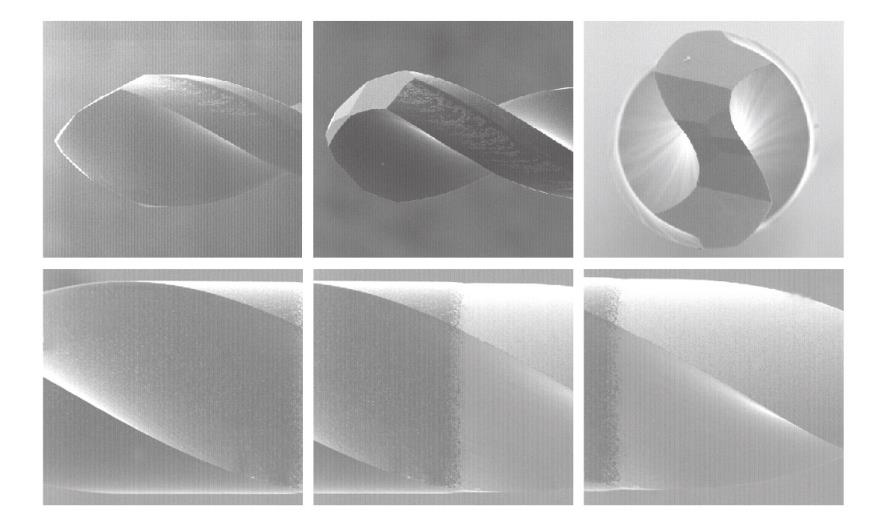

    PCD Micro Drill Slot Structure and Drill Tip

    • 1. The grinding groove of PCD micro drill is smooth and the chip removal is excellent;
    • 2. The edge surface of PCD micro drill is polished and the main edge is sharp;
    • 3. The PCD micro drill's top rotates stably and the hole position is accurate


    PCD Micro Drill Specification


    PCD Mirco drill Specification Selection Table
    SeriesSpecificationd1(mm)L2(mm)maximum diameterD2LαApplication
    WZ1d1*L2*SD3.175*L*α0.2-≤0.42~6323.17538/45110°-130°Graphite, polymer wear-resisting material. aluminum alloy and other non-ferrous metals
    0.4-≤0.84~13.5
    0.8-≤2.0
    WZ2d1*L2*SD3.175*L*α0.4-≤0.84~13.5203.17538/45110°-130°Composite ceramic wear-resistant material
    0.8-≤2.0
    WZ3d1*L2*SD3.175*L*α0.2-≤0.352~4383.17538/45110°-130°Monocrystalline silicon, polysilicon
    0.35-≤0.757~13.5
    RemarksNon-standard PCD Mirco Drill can be customized!

    PCD Micro Drill Features


    • 1. Micro PCD Drills & Tools are new technology allowing the achievement of superb surface finish in Machining very hard materials in the Dental, Electronics, and D&M industries.

    • 2. PCD micro drill is widely used in addition to processing metal materials, and can also be used for inorganic non-metallic material processing, with high processing precision

    • 3. PCD micro drill, compared with traditional alloymicrodrill, can process hole walls with better quality.


    PCD Micro Drill Category and Application Field

    PCD Micro Drill Processing Case

    • Graphite processing case
    • -Ф0.798
    • Zirconic processing case
    • -Ф0.451
    • Monocrystalline silicon processing case

    PCD Micro Drill Patent Certificate


    PCD Micro Drill Customer Review
