RCMN-V round PCD cutting insert blade tool HRA85 for CNC caribe steel rolls turning

Round PCD Insert----APPLICATION

For carbide rolls and other composite rolls with a hardness above HRA85,

PCD round blades can be used to process external and annular grooves.

A complete set of a tool supporting solutions for the steel roll industry has been developed.

It is suitable for a series of processes such as rough turning of the outer circle, hole processing,

crescent groove milling, engraving, and marking of roll processing.

Round PCD Insert----ADVANTAGES

Round PCD Insert----SPECIFICATION

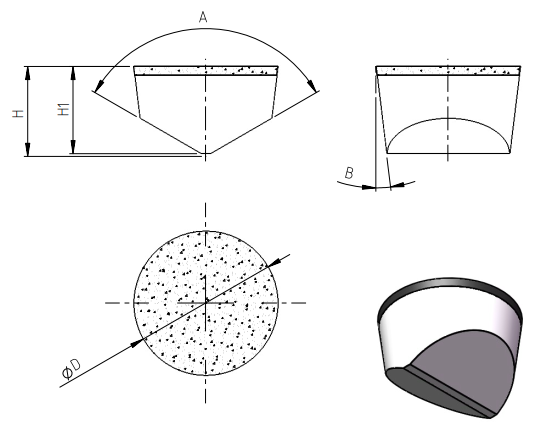

PCD Round Insert Shape	Specification Model	Basic size
		D	H	H1	A	B
	RCMX060500---V	6.5	5	4.8	120°	7°
	RCMX090700---V	9.525	7.94	7.7	120°	7°
	RCMX120700---V	12.7	7.94	7.7	120°	7°

Note: The above size can be customized according to customer needs.

Round PCD Insert----Poly Crystalline Diamond PCD cutter with carbide support

Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling cost significantly, PCD tools are ideal for use with non-ferrous metal, such as aluminum, Zinc and magnesium alloys, GRP composites, carbon fiber reinforced plastics, “green” carbide and ceramic as well as all abrasive materials.

We manufacture PCD Tools with advanced processing machine and control the product quality from the very beginning which keep PCD tools with high accuracy and good quality with consistency.

Round PCD Insert----Steel Roll industry solutions

According to the different requirements of roll processing materials and processing technology, Beijing Worldia Diamond Tools Co., Ltd. has developed different types of tools. For example.PCD/CBN round inserts used for turning the outer circle of rolls and ring grooves ring roller carbide milling groove boring alveolar tool. PCBN small boring tool, pcd small boring tool(small boring tool can be called a rotary cutter, knife ribs, small knife, etc). And the four-sided carving knife is used for engraving marks in the ring groove of the roll. It constitutes a complete set of tool solutions from roll blank to finished product processing.

Round PCD Insert-----WHY CHOOSE US

  Beijing Worldia Diamond Tools Co., Ltd. (namely Worldia)is a national hi-tech enterprise established in Zhongguancun Science and Technology Park in China in 2006. Worldia is a professional manufacturer of glass cutting tools, PCD/PCBN cutting tools, diamond die blanks, saw blades, and a CVD diamond line of products. We are dedicated to the R&D of advanced production technologies and equipment in addition to manufacturing a wide variety of super hard cutting tools. The cutting tools we provide have been widely applied in automotive, electronic, new energy, and other industries. We have been rewarded with numerous patents. Our purpose is to solve processing problems for customers and enhance their competitiveness.

  We manufacture solid carbide cutting tools with a number of five-axis CNC linkage grinders, tool inspectors, HAIMER dynamical balancing machines, ZOLLER tool setting gauges, and other industrial high-end equipment and instruments. We specialized in providing professional services including R&D, manufacturing, regrinding, and technical services.

  At Worldia, we employ unique designs and sophisticated techniques to ensure the high precision and reliable quality of our super hard cutting tool and are now leading in carbon processing cutting tools and other cutting tool industries. Today, our high precision cutting tool, PCD/PCBN roller cutting tool, PCD inserts specially used for cutting wind turbine blades and other products are increasingly used in many fields, such as new composite materials (like nonferrous metal, ferrous metal, tungsten carbide, plastic, fiberglass, etc.), fiber reinforced plastics (FRP), rollers, auto parts, stone engraving, and more.

  In manufacturing our diamond die blanks, we creatively use precision grinding and polishing technologies. The application of cold press-fit techniques instead of hot pressing prevents damage to PCD internal structure caused by high temperature.

  Worldia also manufactures PCD and carbide saw blades, CVD diamond line of products, diamond nozzle, lapping and polishing machines, glass cutting machine, and other products, and is dedicated to offering customized and complete cutting solutions.

  As for super hard materials processing, we provide high precision lapping and polishing, laser cutting, and rework of PDC cutters, in addition to OEM/ODM services. Hence our products are popular in Southeast Asia, Western countries, and others.

  Our values define how we do business and interact with our colleagues, partners, customers, and consumers. Our four core values are integrity, innovation, service, and efficiency. As we expand into new markets, recruit new talent, and face new challenges, these guide our people in the decisions and actions they take every day.

  We are dreamers and innovators!

  We are now made in China and hope we can grow with you together.

  Our vision is to redefine the concept of“made in China".

  Our mission is to focus on high-end super hard tool manufacturing, dedicated to quality changes in the world.
